R6280 6W
•Housing and Mounting ring: die-casting aluminum. •Light source: COB LED with a high efficiency reflector of optical. •The light can be compatible with emergency battery. •Control system, CCT tunable 2700-6500K. •Input line with WAGO terminal. •IP65 can be customized.
Category.
Recessed down lights
Keywords.
Parameters
| Lamp wattage |
6W
|
| Light output |
674Im
|
| Color temperature | 2700K/3000K/4000K |
| CRI | ≥80 |
| Beam angle |
15°/24°/36°/50°
|
| Mains voltage | 220-240V/50-60Hz |
| Driver gear |
36V-135mA
|
| Power factor | >0.5 |
| Certification | TUV, SAA, CB, CE |
| Connection |
Push-in connector
|
| Ceiling cut out |
65*65mm |
| Overall height | 92mm |
| Lamp diameter | 72*72mm |
| Ceiling thickness |
20mm Max
|
| Adjustable | No |
| Surface color |
White Black
|
| Ingress protection |
IP20 IP44 on the visible part once installed |
| Product weight |
0.25kg
|
| Light data file | IES |
| Installation |
Spring fasteners
|
| Dimming options |
DALI,1-10V,TRIAC |
| Brand | VENEZINA |

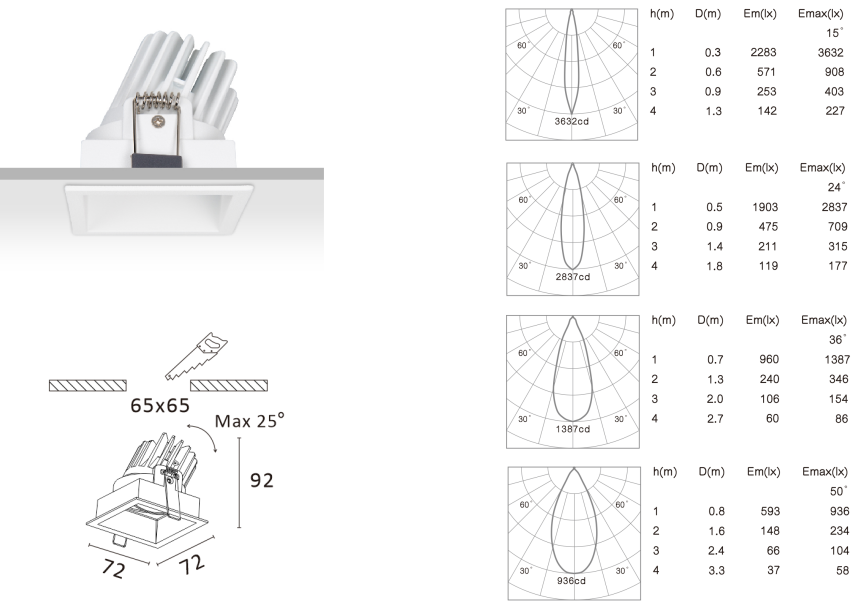

TECHNICAL DRAWING
