C6304 25W

Luminaire housing: Pure aluminum. Ceiling mouted plate: Steel sheet. Light source: COB LED with a high efficiency reflector of optical.

Category.

Surface-mounted lights

Keywords.

Interior Lights

light

sales@venezina.com

Price Inquiry

Download

Parameters

Lamp wattage	25W
Light output	2560lm
Color temperature	2700K, 3000K, 4000K
CRI	≥80
Beam angle	24°/45°
Mains voltage	220-240V/50-60Hz
Driver gear	36V-600mA
Power factor	>0.9
Certification	TUV, SAA, CB, CE
Connection	Surface-Mouted
Ceiling cut out	- - - -
Overall height	135mm
Lamp diameter	120*120mm
Ceiling thickness	- - - -
Adjustable	NO
Surface color	White Silver Black
Ingress protection	IP20
Product weight	0.77Kg
Light data file	IES
Installation	- - - -
Dimming options	DALI,1-10V,Traic
Brand	VENEZINA

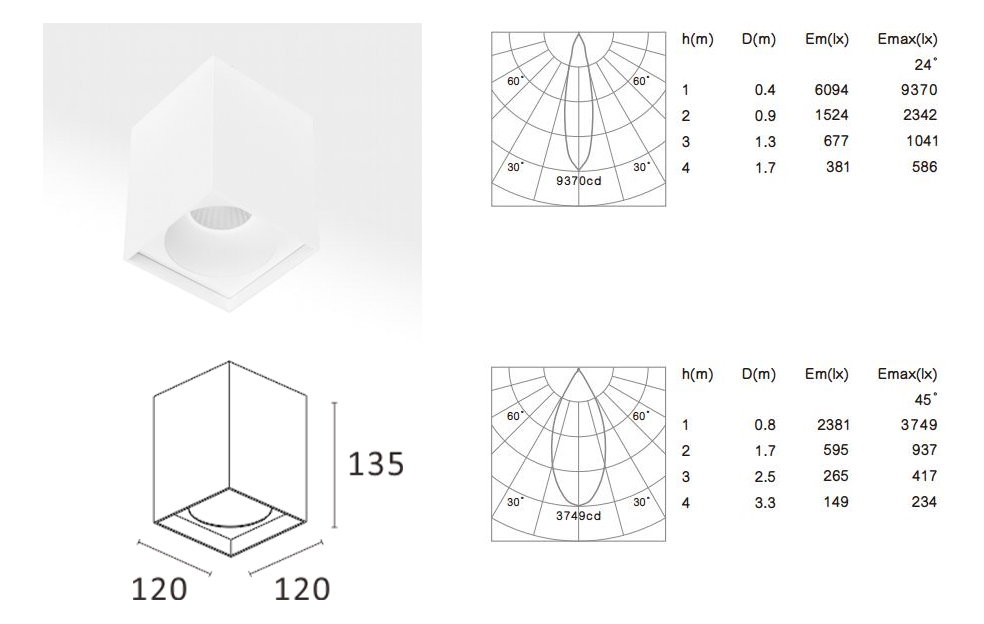

TECHNICAL DRAWING

DOWNLOAD

C6304 25W 24°3000K.IES
C6304 25W 45°3000K.ldt
C6304 25W 45°3000K.IES
C6304 25W 24°3000K.ldt
C6304 25W 45°3000K.pdf
C6304 25W Datasheets .pdf
C6304 25W 24°3000K.pdf
C6304 25W.pdf
