R6103 6W

Luminaire housing: die-casting aluminum. Light source: COB LED with a high efficiency reflector of optical. Mounting ring: Pure aluminum.

Category.

Recessed down lights

Keywords.

Interior Lights

light

sales@venezina.com

Price Inquiry

Download

Parameters

Lamp wattage	6W
Light output	610lm
Color temperature	2700K, 3000K, 4000K
CRI	≥80
Beam angle	20°/40°
Mains voltage	220-240V/50-60Hz
Driver gear	36V-135mA
Power factor	>0.9
Certification	TUV, SAA, CB, CE
Connection
Ceiling cut out
Overall height
Lamp diameter
Ceiling thickness
Adjustable
Surface color	White, Black
Ingress protection	IP20, IP44 on the visible part once installed
Product weight
Light data file	IES
Installation
Dimming options	DALI, 1-10V, TRIAC
Brand	VENEZINA

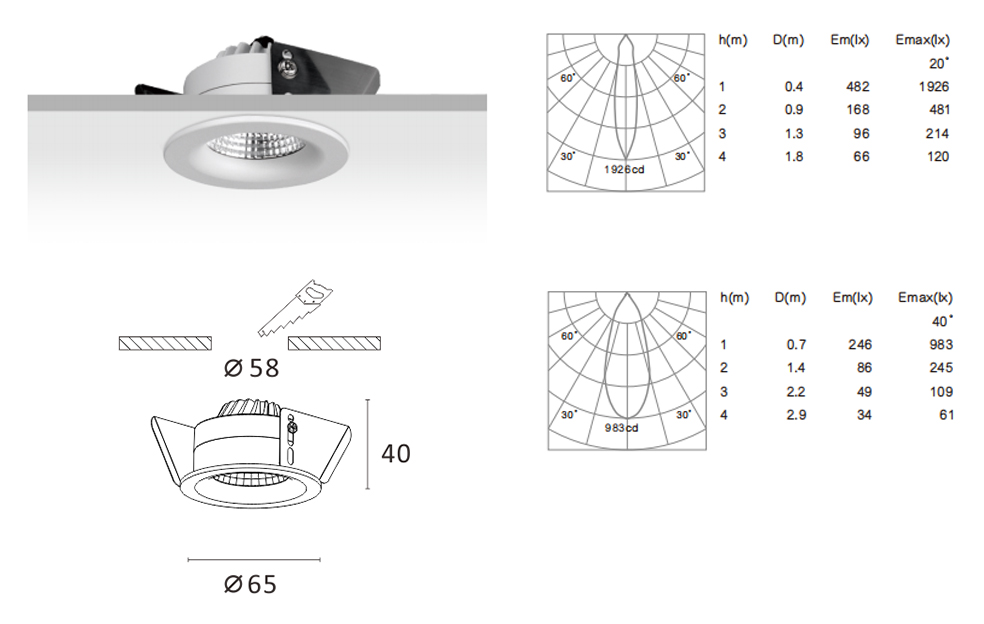

TECHNICAL DRAWING

DOWNLOAD

R6103 6W 40°3000k.pdf
R6103 6W 20°3000k.pdf
R6103 6W Datasheets .pdf
R6103 6W.pdf
