R6154 6W Module down lights

Housing and Mounting ring: Cast aluminum. Light source: COB LED with a lens of optical. The down light tilts to a maximum of 0°-30° onto the vertical plane.

Category.

Module down lights

Keywords.

Products

light

Led recessed track

Downlight led 3000k

LED downlight 3000k

sales@venezina.com

Price Inquiry

Download

The best Module down lights is lighting equipment that modularizes the design of lamps. Its core feature is that the various parts of the lamps (such as light sources, drivers, and radiators) can be replaced or combined individually as needed, thus achieving flexible customization and maintenance. This design enables modular downlights to meet different lighting needs while having high maintainability and scalability.

Its characteristics are mainly reflected in its high energy efficiency, long life, and excellent heat dissipation performance. Due to the use of advanced LED technology, they are more energy-efficient than traditional light sources and can effectively reduce energy consumption. In addition, the modular design makes the maintenance of lamps more convenient, and the modules can be replaced according to different needs, which greatly improves the convenience and economy of use.

The best Module down lights is widely used in many fields such as business, office, home, and public places. Whether in shopping malls, hotels, exhibition halls, or other places, it can provide high-quality and uniform lighting effects. At the same time, modular downlights in home environments have become an important choice for modern home decoration due to their flexible design and diverse functions. Its wide applicability and high efficiency enable it to play an important role in a variety of environments.

Parameters

Lamp wattage	6W
Light output	703Im
Color temperature	2700K, 3000K, 4000K
CRI	≥80
Beam angle	24°/36°/60°
Mains voltage	220-240V/50-60Hz
Driver gear	36V-135mA
Power factor	>0.9
Certification	TUV, SAA, CB, CE
Connection	Push-in connector
Ceiling cut out	Φ83mm
Overall height	38mm
Lamp diameter	Φ90mm
Ceiling thickness	20mm
Adjustable	Yes
Surface color	White, Black
Ingress protection	IP20, IP44 on the visible part once installed
Product weight	0.23kg
Light data file	IES
Installation	Spring fasteners
Dimming options	DALI, 1-10V, TRIAC
Brand	VENEZINA

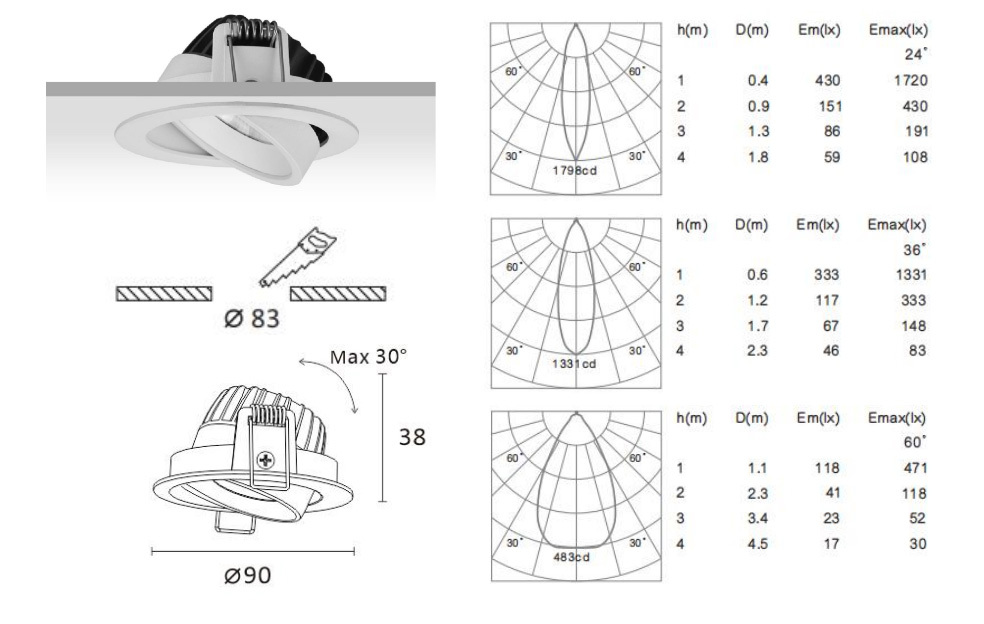

TECHNICAL DRAWING

DOWNLOAD

Module down lights
