R6255 10W

Housing and mounting ring: Cast aluminum. The down light tilts to a maximun of 0°-30° onto thevertied plane. Light source: COB LED with a lens of optical.

Category.

Module down lights

Keywords.

Products

light

sales@venezina.com

Price Inquiry

Download

Parameters

Lamp wattage	10W
Light output	911Im
Color temperature	2700K, 3000K, 4000K
CRI	≥80
Beam angle	24°/36°
Mains voltage	220-240V/50-60Hz
Driver gear	36V-135mA
Power factor	>0.9
Certification	TUV, SAA, CB, CE
Connection	Push-in connector
Ceiling cut out	Φ83mm
Overall height	54mm
Lamp diameter	Φ90mm
Ceiling thickness	20mm Max
Adjustable	Yes
Surface color	White, Black
Ingress protection	IP20, IP44 on the visible part once installed
Product weight	0.36kg
Light data file	IES
Installation	Spring fasteners
Dimming options	DALI, 1-10V, TRIAC
Brand	VENEZINA

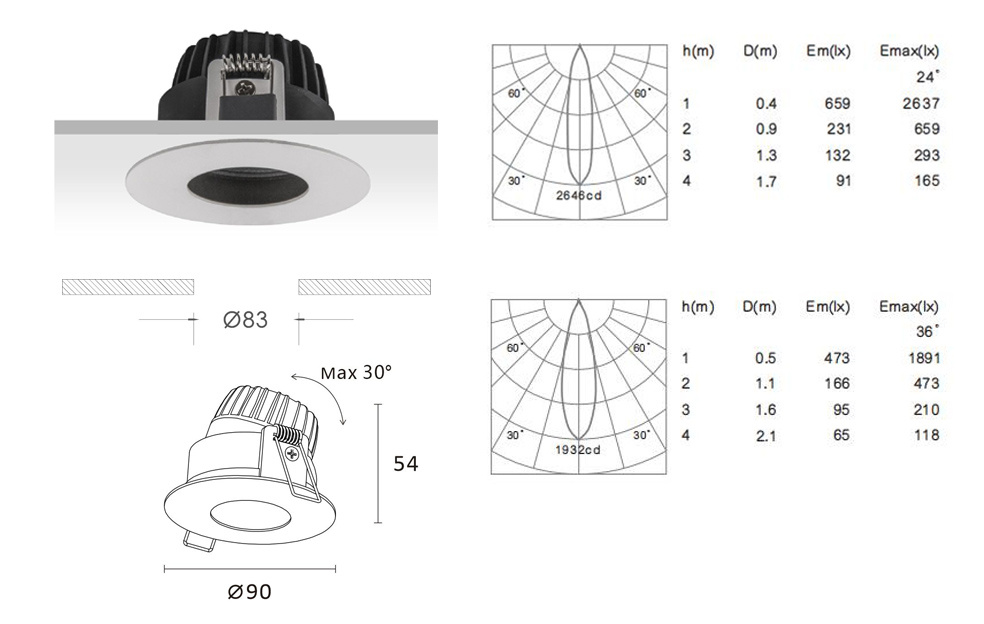

TECHNICAL DRAWING

DOWNLOAD

Module down lights
