R6854 1W

•Housing and mounting ring: Aluminum alloy. •Light source: SMD LED with a lens of optical.

Category.

Recessed down lights

Keywords.

Interior Lights

light

sales@venezina.com

Price Inquiry

Download

Parameters

Lamp wattage	1W
Light output	99Im
Color temperature	2700K/3000K/4000K
CRI	≥80
Beam angle	15°/30°/60°
Mains voltage	220-240V/50-60Hz
Driver gear	3V-350mA
Power factor	>0.9
Certification	TUV, SAA, CB, CE
Connection	Push-in connector
Ceiling cut out	Φ45mm
Overall height	35mm
Lamp diameter	Φ50mm
Ceiling thickness	20mm Max
Adjustable	No
Surface color	White Black
Ingress protection	IP20 IP44 on the visible part once installed
Product weight	0.04kg
Light data file	IES
Installation	Spring fasteners
Dimming options	DALI,1-10V,TRIAC
Brand	VENEZINA

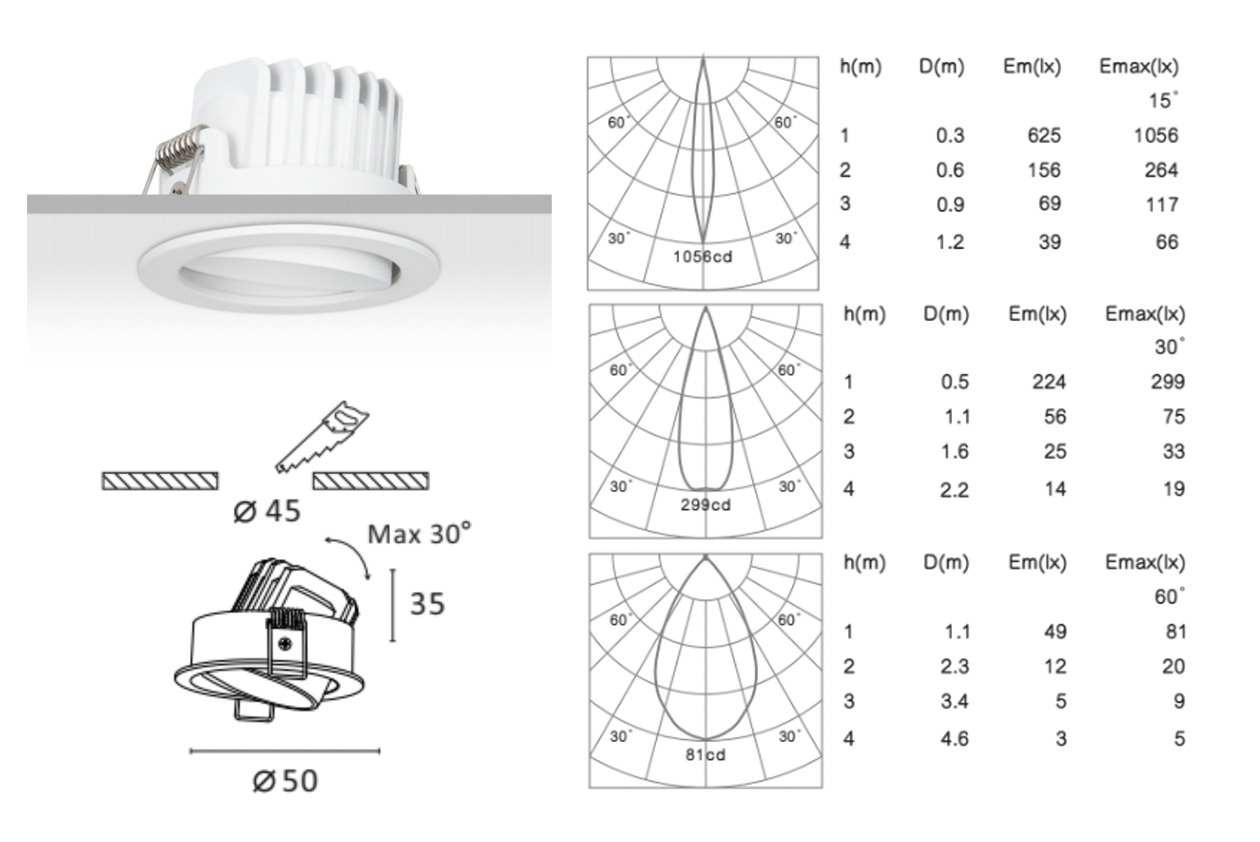

TECHNICAL DRAWING

DOWNLOAD

R6854 1W 36°3000K.IES
R6854 1W 36°3000K.ldt
R6854 1W 24°3000K.ldt
R6854 1W 24°3000K.IES
R6854 1W Datasheets .pdf
R6854 1W 24°3000K.pdf
R6854 1W 36°3000K.pdf
R6854 1W.pdf

Select all

Recessed down lights
