R6933 6W
•Die casting process, simple and exquisite appearance, and good heat dissipation performance. •The new design of narrow edge frame to blend the ceiling perfectly. •Split structure and the design of frame embedded to avoid ceiling damage during maintenance. •The reflector structure can make extreme anti-glare and excellent lighting effect. •Vertical rotation at 30 degrees, horizontal rotation at 355 degrees, suitable for various applications. •Silver mirror, dark chrome, champagne gold, multi-color reflectors can be provided, suitable for various environments. •UGR≤10. •IP65 can be customized.
Category.
Recessed down lights
Keywords.
Interior Lights
light
Parameters
| Lamp wattage |
6W
|
| Light output |
675Im
|
| Color temperature | 2700K, 3000K, 4000K |
| CRI | ≥80 |
| Beam angle |
10°/24°/36°/50°
|
| Mains voltage | 220-240V/50-60Hz |
| Driver gear |
36V-135mA
|
| Power factor | >0.5 |
| Certification | TUV, SAA, CB, CE |
| Connection |
Push-in connector
|
| Ceiling cut out |
Φ70mm
|
| Overall height | 90mm |
| Lamp diameter | Φ76mm |
| Ceiling thickness |
20mm Max
|
| Adjustable | Yes |
| Surface color |
White Black
|
| Ingress protection |
IP20
IP44 on the visible part once installed
|
| Product weight |
0.25kg
|
| Light data file | IES |
| Installation |
Spring fasteners
|
| Dimming options | DALI, 1-10V, TRIAC |
| Brand | VENEZINA |

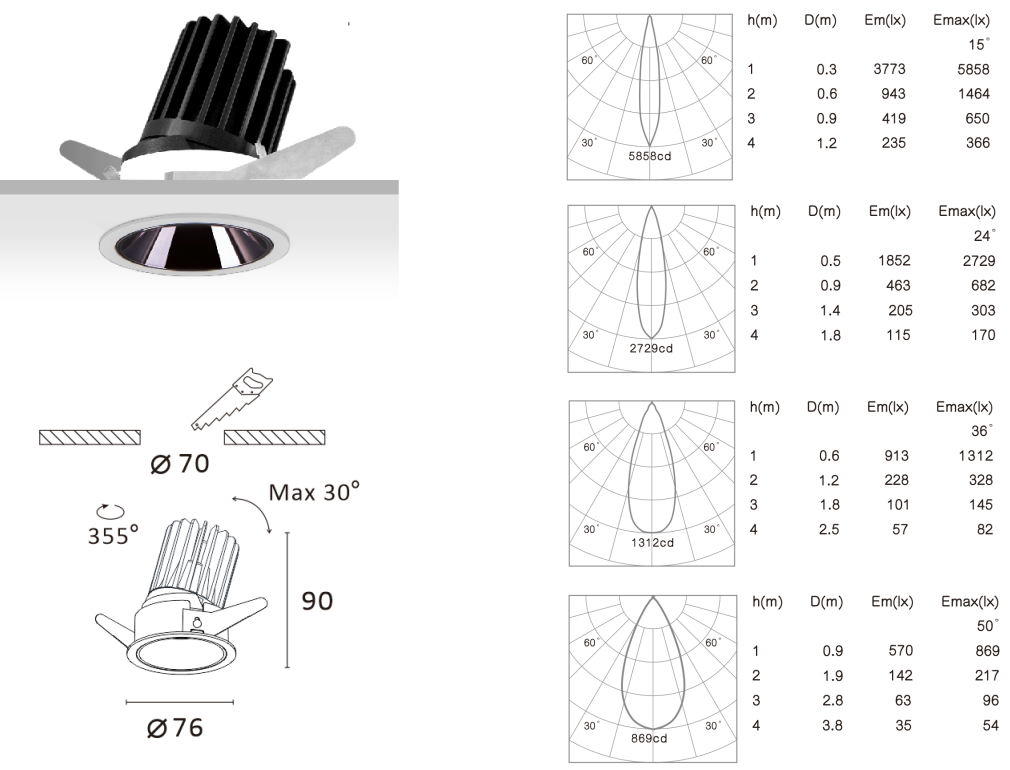

TECHNICAL DRAWING
DOWNLOAD
