R6973 10W

•Housing and Mounting ring: die-casting aluminum. •Light source: COB LED with a lens of optical. •The down light tilts to a maximum of 0°-30° onto the vertical plane. •IP65 is available. •Control system, CCT tunable 2700-6500K. •Input line with WAGO terminal.

Category.

Recessed down lights

Keywords.

Interior Lights

light

sales@venezina.com

Price Inquiry

Download

Parameters

Lamp wattage	10W
Light output	1017Im
Color temperature	2700K/3000K/4000K
CRI	≥80
Beam angle	15°/24°
Mains voltage	220-240V/50-60Hz
Driver gear	36V-250mA
Power factor	>0.9
Certification	TUV, SAA, CB, CE
Connection	Push-in connector
Ceiling cut out	Φ83mm
Overall height	62mm
Lamp diameter	Φ90mm
Ceiling thickness	20mm Max
Adjustable	Yes
Surface color	White Silver Black
Ingress protection	IP20 IP44 on the visible part once installed
Product weight	0.36kg
Light data file	IES
Installation	Spring fasteners
Dimming options	DALI,1-10V,TRIAC
Brand	VENEZINA

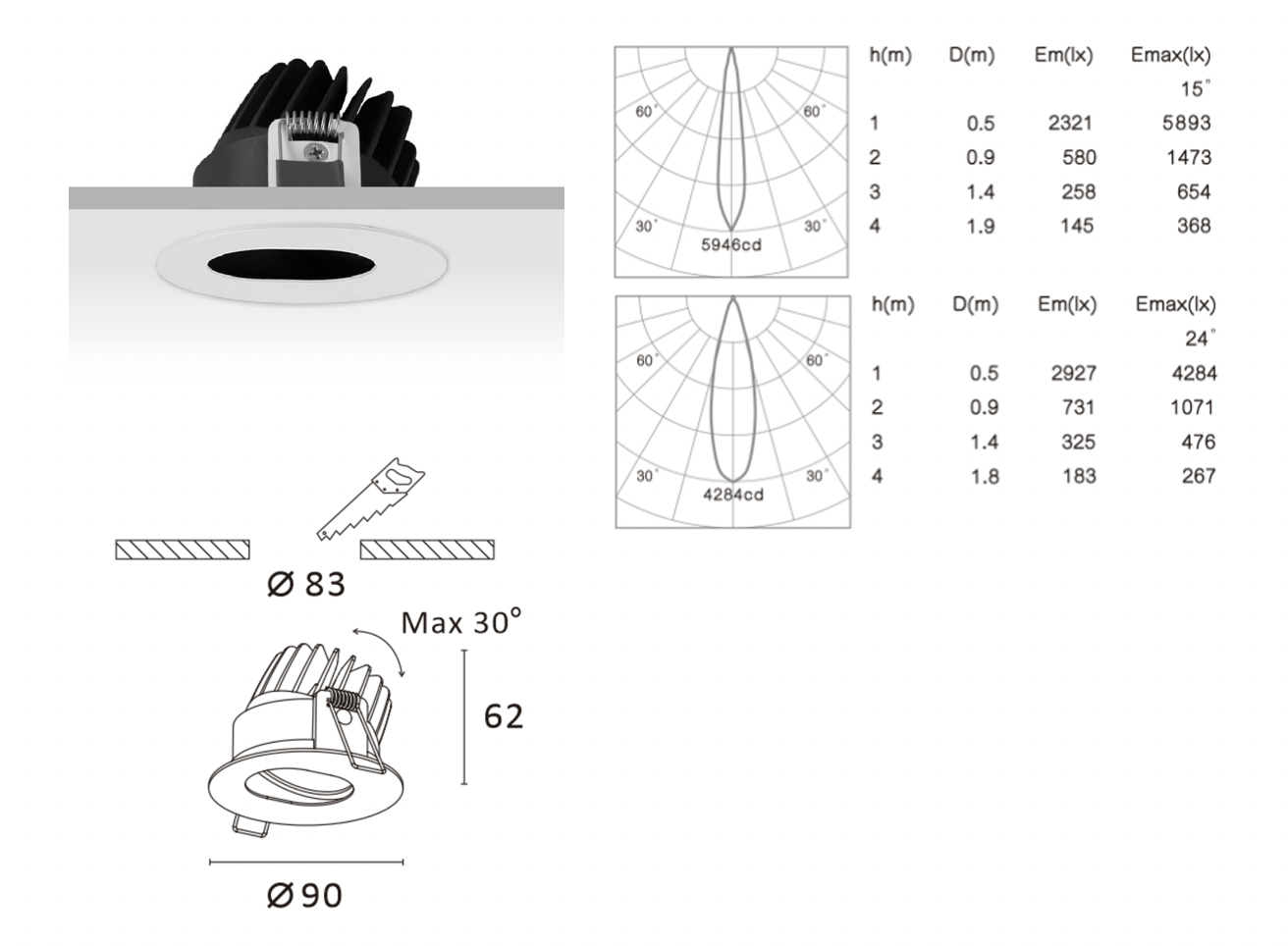

TECHNICAL DRAWING

DOWNLOAD

R6973 10W 15°.ldt
R6973 10W 15°.IES
R6973 10W 24°.ldt
R6973 10W 24°.IES
R6973 10W 24°.pdf
R6973 10W 15°.pdf
R6973 10W Datasheets .pdf

Select all

Recessed down lights
